SX-180
Telescopic Boom Lift
The highest reaching model in the line-up, the Genie® SX™-180 telescopic boom is built to safely and quickly lift operators. It is purpose-built to work on jobsites in the oil and gas industries and in commercial construction, industrial construction and maintenance, and general maintenance applications.
Overview

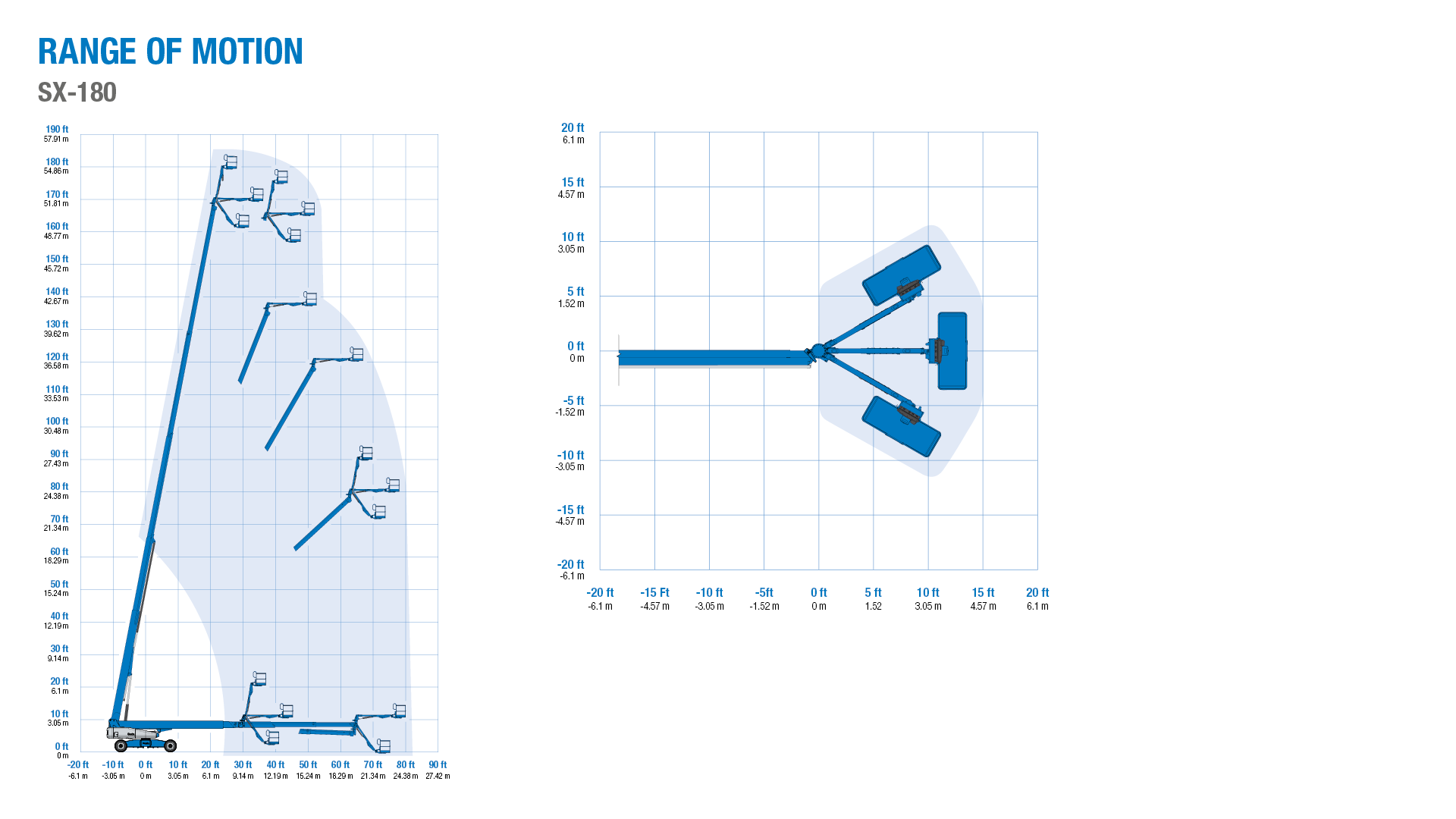

- Tackles the most extreme jobs with a vertical reach of 186 ft (56.86 m) and horizontal reach of 80 ft (24.38 m)
- Easily position workers and gear with a 10 ft (3.05 m) rotating jib
- Genie X-Chassis® extends and retracts to provide stability on the job and a narrow profile for transport
- Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
| Specification | Value |
|---|---|
| Max Working Height | 186 ft | 56.86 m |
| Max Horizontal Reach | 80 ft | 24.38 m |
| Below Ground Reach | 2 ft | 0.61 m |
| Platform Capacity | 750 lb | 340 kg |
| Machine Width and Length | Width: 8 ft 2 in - 16 ft 6 in | Length: 53 ft 1 in | Width: 2.49 m - 5.03 m | Length: 16.18 m |
- SX-180 - Product Specifications - 2023 - EN-US
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Image and Video Gallery
Related Products, Attachments and Accessories
-
![]()
-
![]()
SX-125 XC
Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX-125 XC™ telescopic bo...
-
![]()

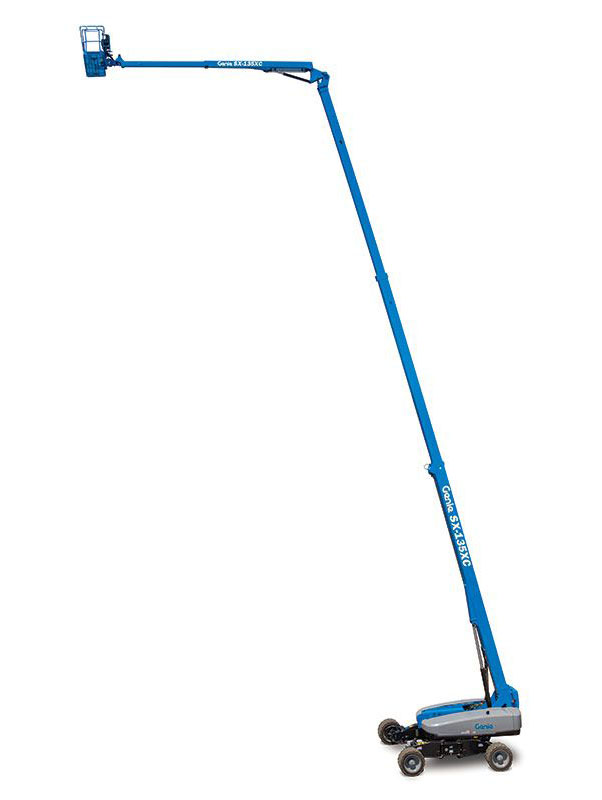

SX-135 XC
