SX-125 XC
Telescopic Boom Lift
-(1).jpg?sfvrsn=f826353e_38)
Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX-125 XC™ telescopic boom works in more applications that require higher capacities thanks to its industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg)**.
Overview

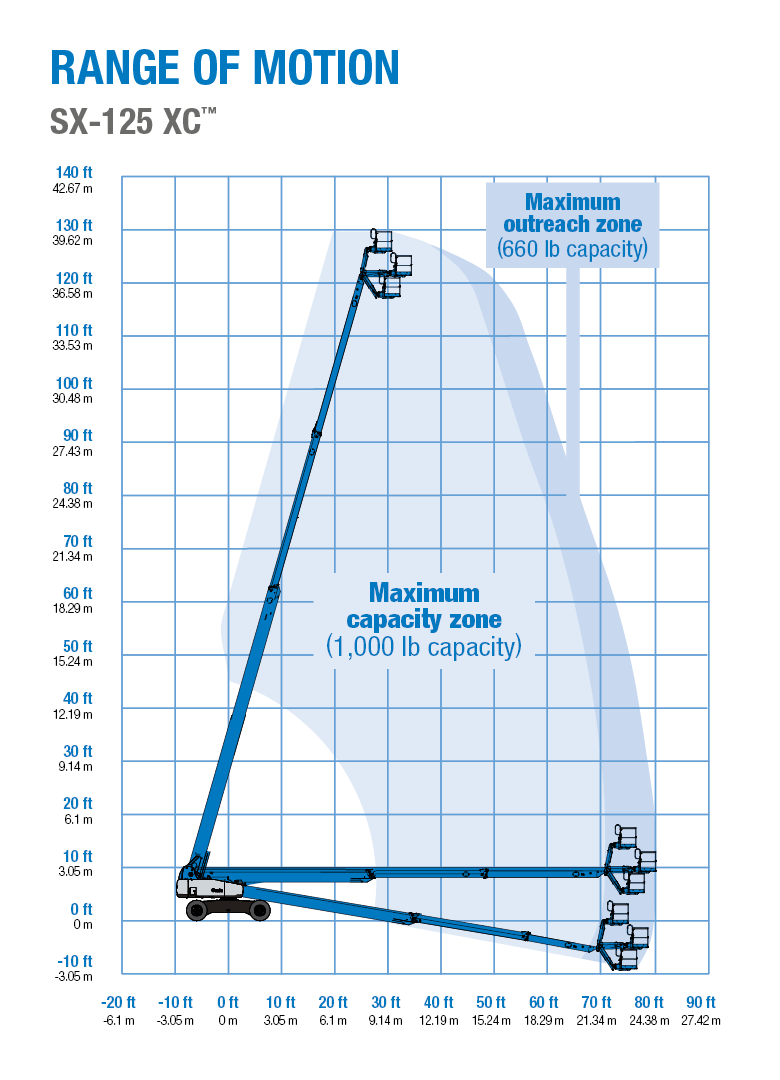

- Smooth range of motion envelope — no more saw tooth
- Mini Genie X-Chassis® design for compact transportation and work in confined areas
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 8 ft 10 in (2.69 m) of reach below grade
** Maximum outreach zone / maximum capacity zone.
| Specification | Value |
|---|---|
| Max Working Height | 131 ft | 40.10 m |
| Max Horizontal Reach | 80 ft | 24.38 m |
| Below Ground Reach | 8 ft 10 in | 2.69 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | Width: 8 ft 2 in - 12 ft 11 in | Length: 46 ft 9 in | Width: 2.49 m - 3.94 m | Length: 14.25 m |
- SX-125 XC Product Specifications – 2024
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
