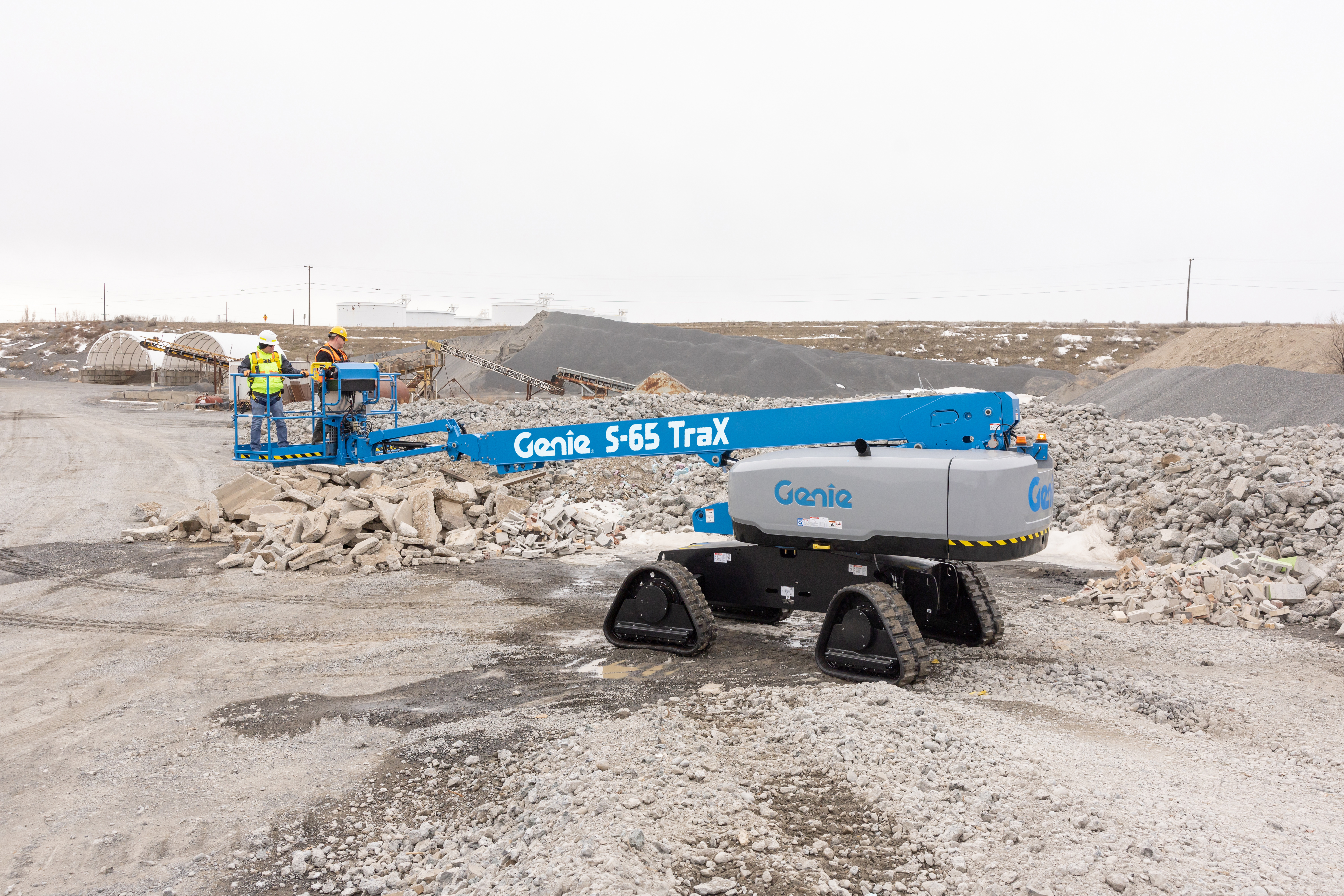

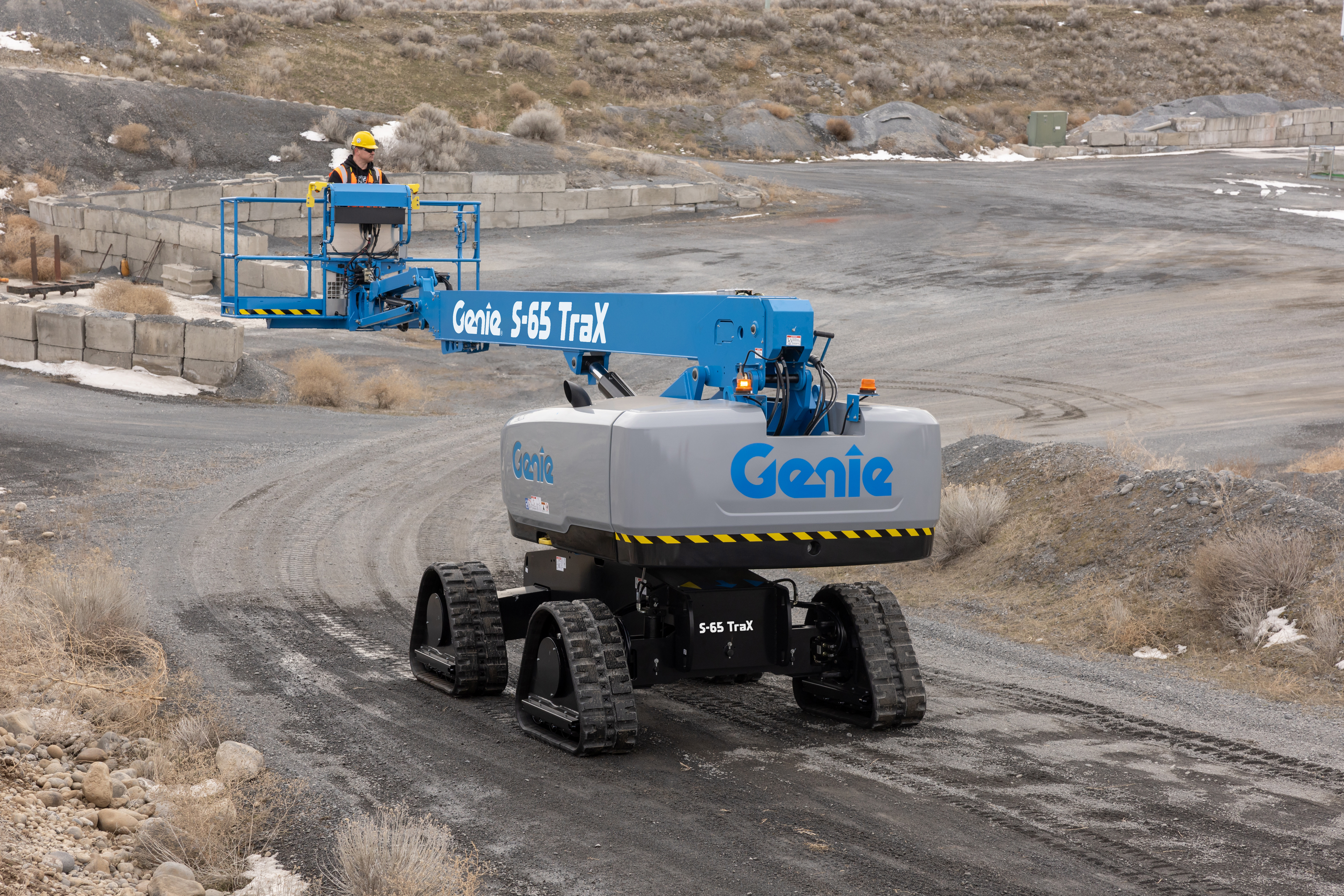

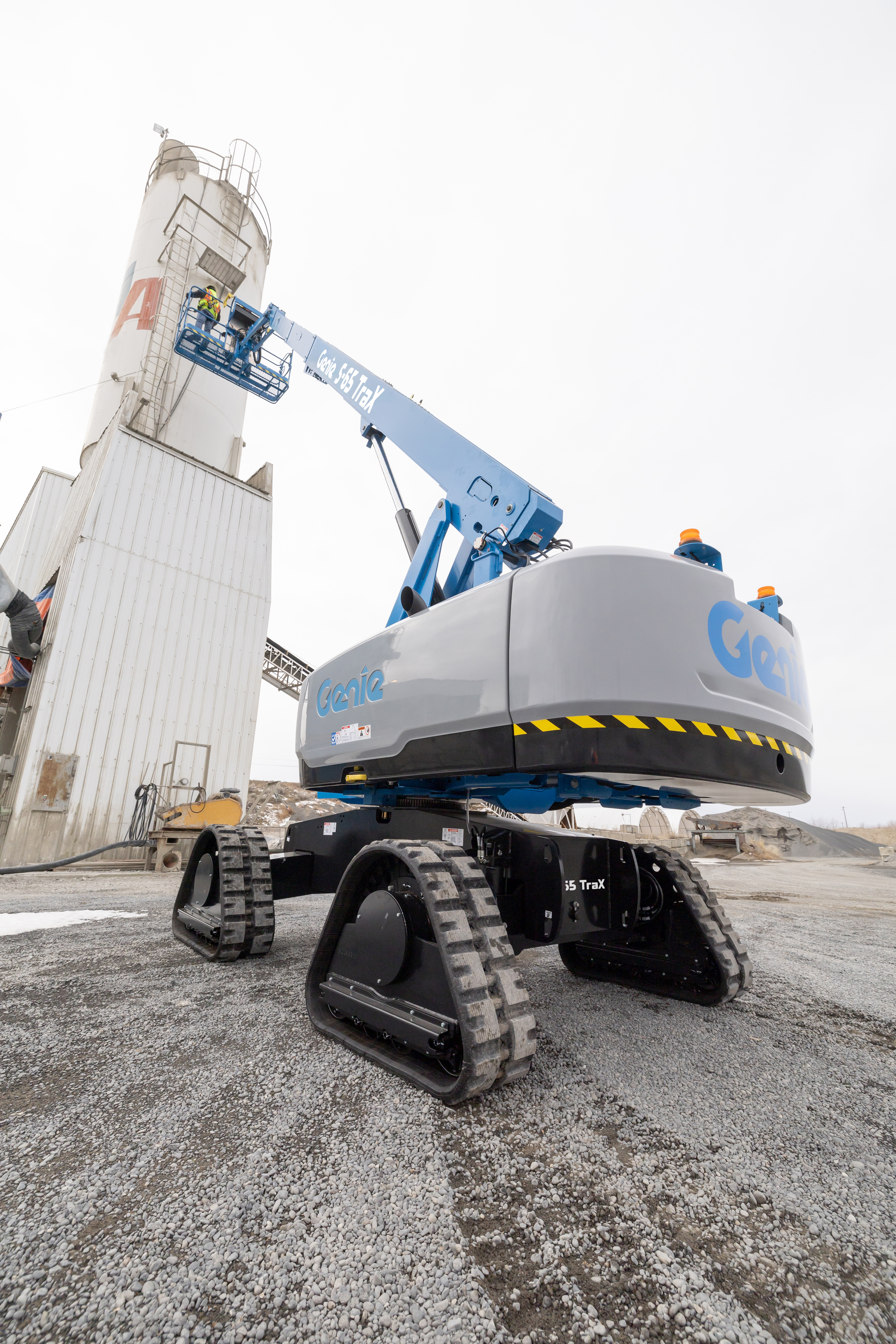

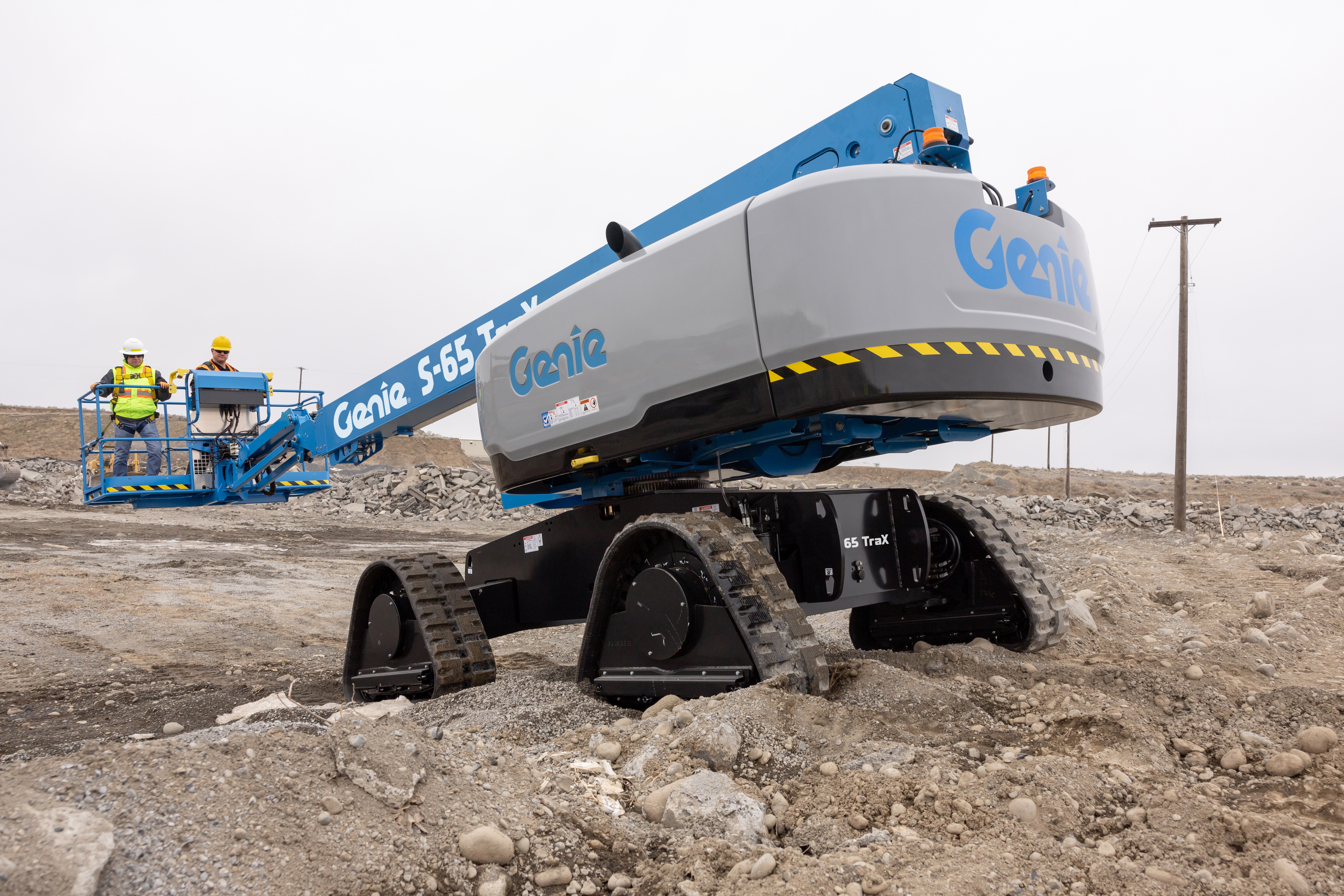

Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 XC and S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
S-65 XC Overview
S-65 TraX Overview
| Specification | Value |
|---|---|
| Max Working Height | 71 ft | 21.81 m |
| Max Horizontal Reach | 54 ft 2 in | 16.51 m |
| Below Ground Reach | 8 ft 8 in | 2.65 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 8 ft 2 in, 32 ft | 2.49 m, 9.76 m |

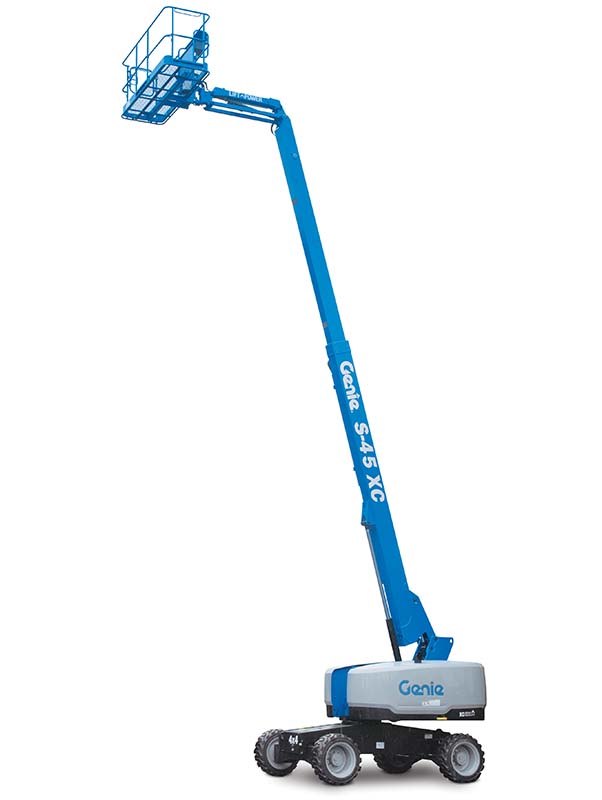

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-40 XC™ and S-45 XC telescopic booms — offering a dual lift capacity of 660 lb (300 kg) unrestricted an...
Genie® S®-85 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sit...
