Z-45 FE
Articulated Boom Lifts
Two machines in one, the Genie® Z®-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
Overview
- Full-time active oscillating axle helps maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance
- Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
| Specification | Value |
|---|---|

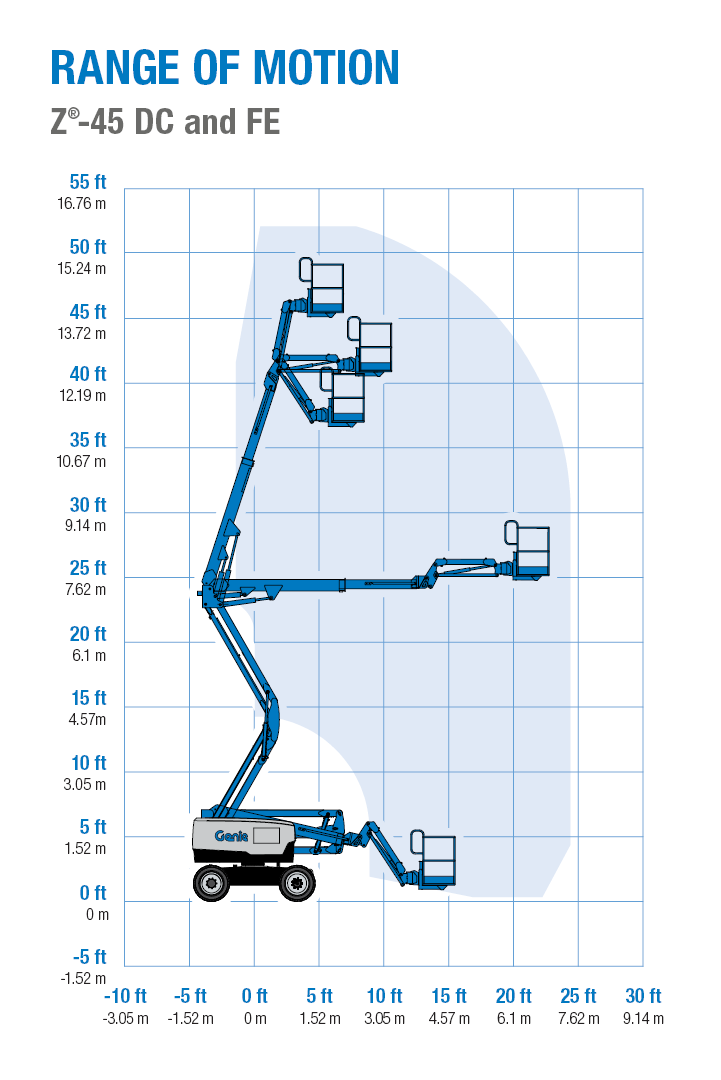

| Max Working Height | 51 ft 8 in | 15.92 m |
| Max Horizontal Reach | 22 ft 9 in | 6.94 m |
| Max Up and Over Clearance (riser extended) | 24 ft 7 in | 7.50 m |
| Platform Capacity | 660 lb | 300 kg |
- Z-45 DC & Z-45 FE Product Specifications 2024
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
